The CyberSecurity Club IITB conducts an yearly CsecCTF. This was also my first CTF. There were many interesting questions but the one we were not able to solve until the final moments was trig. Luckily, we were able to hack a solution in the final few hours and won the whole thing (Go team lolwamen!!).

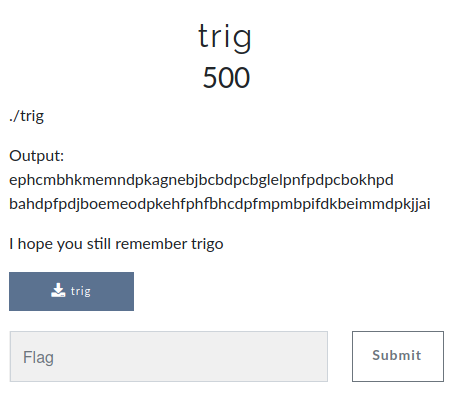

Problem
Initial Analysis
$ file trig
trig: ELF 32-bit LSB executable, Intel 80386, version 1 (SYSV), dynamically linked, interpreter /lib/ld-, BuildID[sha1]=be9f9521d9010aa32e53457121ba102647593600, stripped
Looks like an x86 executable. Let’s disassemble and see what’s inside.
$ objdump -d trig
trig: file format elf32-i386
Disassembly of section .text:
0804814f <.text>:
804814f: 58 pop %eax
8048150: 58 pop %eax
8048151: 5c pop %esp
8048152: db 44 24 0c fildl 0xc(%esp)
8048156: 61 popa
8048157: 68 00 ff 3f 00 push $0x3fff00
804815c: 50 push %eax
804815d: 68 80 80 80 80 push $0x80808080
8048162: dd 44 24 03 fldl 0x3(%esp)
8048166: d9 ff fcos
8048168: 89 4c 24 04 mov %ecx,0x4(%esp)
804816c: dd 44 24 03 fldl 0x3(%esp)
8048170: d9 ff fcos
8048172: 89 54 24 04 mov %edx,0x4(%esp)
8048176: dd 44 24 03 fldl 0x3(%esp)
804817a: d9 ff fcos
804817c: 89 5c 24 04 mov %ebx,0x4(%esp)
8048180: dd 44 24 03 fldl 0x3(%esp)
8048184: d9 ff fcos
8048186: 89 6c 24 04 mov %ebp,0x4(%esp)
804818a: dd 44 24 03 fldl 0x3(%esp)
804818e: d9 ff fcos
8048190: 89 74 24 04 mov %esi,0x4(%esp)
8048194: dd 44 24 03 fldl 0x3(%esp)
8048198: d9 ff fcos
804819a: 89 7c 24 04 mov %edi,0x4(%esp)
804819e: dd 44 24 03 fldl 0x3(%esp)
80481a2: d9 ff fcos
80481a4: dd 5c 24 06 fstpl 0x6(%esp)
80481a8: dd 5c 24 0c fstpl 0xc(%esp)
80481ac: dd 5c 24 12 fstpl 0x12(%esp)
80481b0: dd 5c 24 18 fstpl 0x18(%esp)
80481b4: dd 5c 24 1e fstpl 0x1e(%esp)
80481b8: dd 5c 24 24 fstpl 0x24(%esp)
80481bc: dd 5c 24 2a fstpl 0x2a(%esp)
80481c0: dd 5c 24 fe fstpl -0x2(%esp)
80481c4: bb 01 00 00 00 mov $0x1,%ebx
80481c9: 8d 4c 24 fc lea -0x4(%esp),%ecx
80481cd: ba 02 00 00 00 mov $0x2,%edx
80481d2: bf 30 00 00 00 mov $0x30,%edi
80481d7: 4f dec %edi
80481d8: 78 1c js 0x80481f6
80481da: 8a 04 3c mov (%esp,%edi,1),%al
80481dd: c1 e0 04 shl $0x4,%eax
80481e0: 8a 04 3c mov (%esp,%edi,1),%al
80481e3: 66 25 0f 0f and $0xf0f,%ax
80481e7: 66 05 61 61 add $0x6161,%ax
80481eb: 50 push %eax
80481ec: b8 04 00 00 00 mov $0x4,%eax
80481f1: cd 80 int $0x80
80481f3: 58 pop %eax
80481f4: eb e1 jmp 0x80481d7
80481f6: b8 04 00 00 00 mov $0x4,%eax
80481fb: ba 01 00 00 00 mov $0x1,%edx
8048200: 6a 0a push $0xa
8048202: cd 80 int $0x80
8048204: 58 pop %eax
8048205: b8 01 00 00 00 mov $0x1,%eax
804820a: 31 db xor %ebx,%ebx
804820c: cd 80 int $0x80
Notice that there are 7 fcos ops in the assembly, which is basically an inplace cosine operation. The floating point instructions like fcos, fldl, fstpl... belong to the x87 instruction set. Also, the binary takes a command line argument and returns a string of fixed length (96).
$ ./trig gibberish
cpefdefhgfbpdphdehmafmpndpbfmlnkbcjedpdhbecjbjdkdppgngeohipeepbamjgpcenfdpcmiagldjonbebnfffbfbae
Now, we can just reverse engineer whats happening by studying the x87 ops and carefully looking at assembly instructions, but who wants to do all that.
Ditch the assembly
We’ll explore a different route. We noticed that output stops changing when length of input argument exceeds 32 characters. Also, shifting the argument by a factor of 4 seems to shift some output chars in the opposite direction.
With some trials, we figure out that, an input string ABCDEFGH (A, B, . . represent a block of 4 characters) is mapped to f(H)f(G)f(F)f(E)f(C)f(B)f(A)p(D). Here, \(f(X) \neq p(X)\) and output of both is 12 characters in length.
This leads us to the conclusion that if we can just find out the mappings \(f, p\) and invert them, we get the flag.
Brute Force Attack :)
First, we need a wordlist, so we generate one.
import os
from tqdm import tqdm
charset = "0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ!?@_" + '{' + '}'
n = len(charset)
with open('wordlist.txt', 'w') as f:
for i in tqdm(range(n)):
for j in range(n):
for k in range(n):
for l in range(n):
f.write(charset[i]+charset[j]+charset[k]+charset[l]+'\n')
There are 21381376 words, this’ll take some time.
Second, we need to find the output for each of these words and check for a match in our given output. In 1 call to the executable, we can get outputs for 7 4-char blocks. Running the binary from C++ or Python is easy, but if you also read stdout, it costs time. So, I just write the output in a new file for reading it later because I couldn’t find the C++ way to read stdout without the slow Popen().
#include <bits/stdc++.h>
using namespace std;
/*
Template: ggggffffeeeexxxxddddccccbbbbaaaa
*/
int main()
{
int n = 19545240;
string words[8];
string line = "";
string cmd;
string base_cmd = "./trig ";
ifstream wordfile;
wordfile.open("words.txt");
for (int i=0; i < (n/7); i++)
{
for (int j = 0; j < 8; j++)
{
if (j == 4)
{
words[j] = "xxxx";
}
else
{
getline(wordfile, words[j]);
}
}
for (int j = 0; j < 8; j++)
{
line = line + words[7 - j];
}
cmd = base_cmd + line + " >> outputs.txt";
const char *command = cmd.c_str();
system(command);
line = "";
}
wordfile.close();
return 0;
}
It takes around 80 minutes to finish on my laptop (Ryzen 5 3550), but still much less than it took me to reverse the assembly.
Cleaning Up
Now, we just have to match the outputs to the required outputs and recover the input ezpz.
from tqdm import tqdm
output = "ephcmbhkmemndpkagnebjbcbdpcbglelpnfpdpcbokhpdbahdpfpdjboemeodpkehfphfbhcdpfmpmbpifdkbeimmdpkjjai"
result = [output[12*i:12*i+12] for i in range(7)]
lines = 2792177
with open('words.txt', 'r') as f:
words = f.readlines()
lookup = {}
s = []
with open('outputs.txt', 'r') as f:
for l in tqdm(range(lines)):
a = f.readline()
a = [a[i*12:i*12+12] for i in range(7)]
for i, k in enumerate(a):
if k in result:
lookup[k] = words[7*l+i][:-1]
s.append(7*l+i)
flag = ''
for i in result[::-1]:
if i in lookup.keys():
flag += lookup[i]
print(flag)
$ python3 match.py
100%|██████████████████████████████████| 2792177/2792177 [00:08<00:00, 313834.23it/s]
CsecIITB{H0pu_l34rn3d_R1ght}
But, this is not the flag. That’s because we only found the mapping \(f\). Finding \(p\) would have taken 7 times longer. We know we are missing a 4-char block, we know the position too. We can make some educated guesses for the missing block, it’s not that hard.
Flag
CsecIITB{H0p3_y0u_l34rn3d_R1ght}
See, assembly is overrated. Warm up your processors instead.
